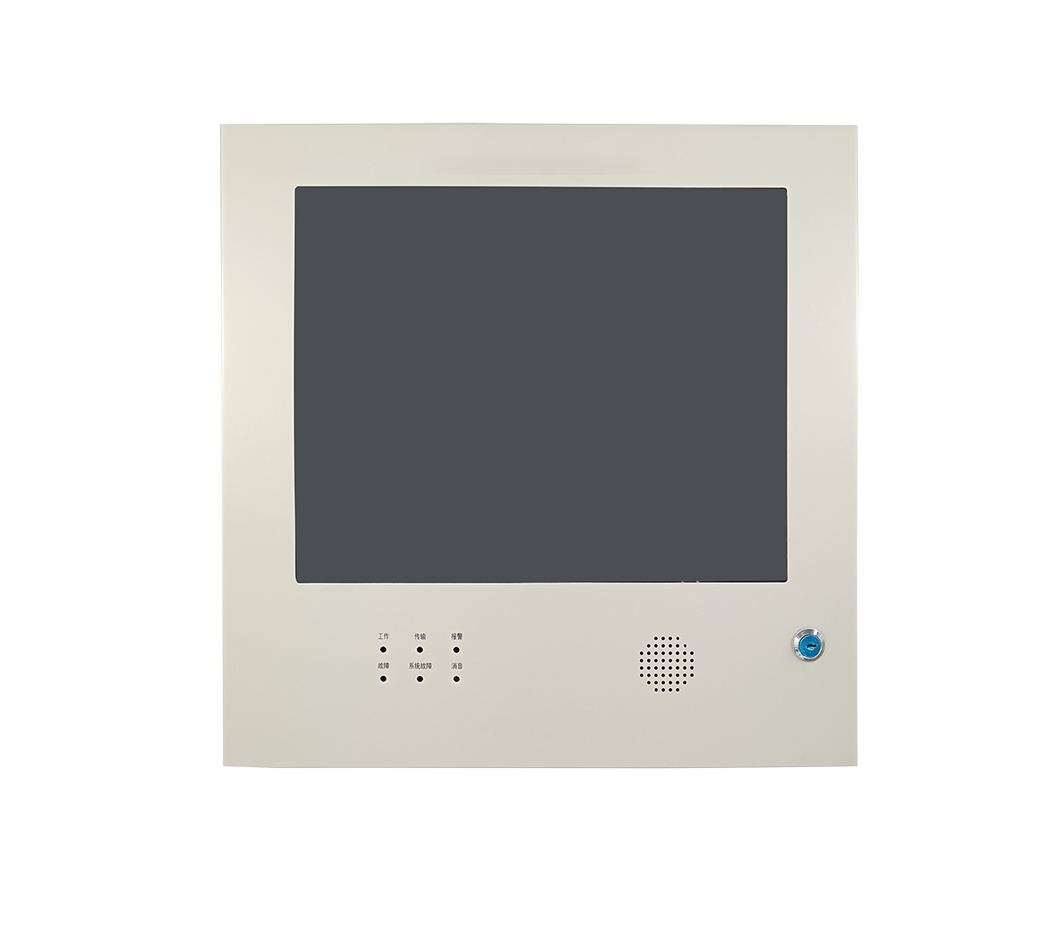

A 17-inch (1280×1024) fanless capacitive touch panel PC in a modular all-metal housing, used as a fire control room graphic display and industrial HMI.
Overview
The TV-IN17TP-BG-PLUS combines a high-precision capacitive touch screen, a bright 17-inch industrial LCD, a low-power embedded board and an all-metal housing. Its modular, fanless design circulates air without moving parts and supports desktop, panel (embedded), rack and wall mounting. The model is deployed as a graphic display unit in fire control rooms and as an operator panel in power automation and smart-factory lines.
Key features
- 17″ LED LCD, 1280×1024, 250 cd/m², 16.7M colors
- Industrial capacitive multi-touch with smooth handwriting
- All-metal modular enclosure; fanless circulation cooling
- Waterproof, dustproof and scratch-resistant
- Desktop, panel, rack and wall mounting
- Configurable CPU board, interfaces and OS
Specifications
| Item | Specification |
|---|---|
| Display | 17″ LED LCD, 16.7M colors |
| Resolution | 1280 × 1024 |
| Brightness | 250 cd/m² |
| Touch | Industrial capacitive; single/dual/multi-touch, gesture, handwriting |
| Enclosure | All-metal, modular, fanless |
| Mounting | Desktop, panel, rack, wall |
| Protection | Waterproof, dustproof, scratch-resistant (IP rating on request) |
| Processor / I/O | Configurable per project |
| Operating Temperature | Wide range (on request) |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Fire control room graphic display units
- Industrial automation HMI
- Power automation and substations
- Smart factory lines
- IoT supervisory terminals
Related industry solutions: Fire Safety & Building Control · Industrial Automation & Machine Builders · Power, Energy Storage & Utilities
Customization and ordering
The TV-IN17TP-BG-PLUS can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Industrial Panel PCs & HMI Touch Panels
Frequently asked questions
What is a fire control room graphic display unit?
It is the touch terminal in a building’s fire control room that shows floor plans, device status and alarm locations from the fire alarm system. The TV-IN17TP-BG-PLUS is used in this role.
Which mounting options are supported?
Desktop, panel (embedded), rack and wall mounting.
