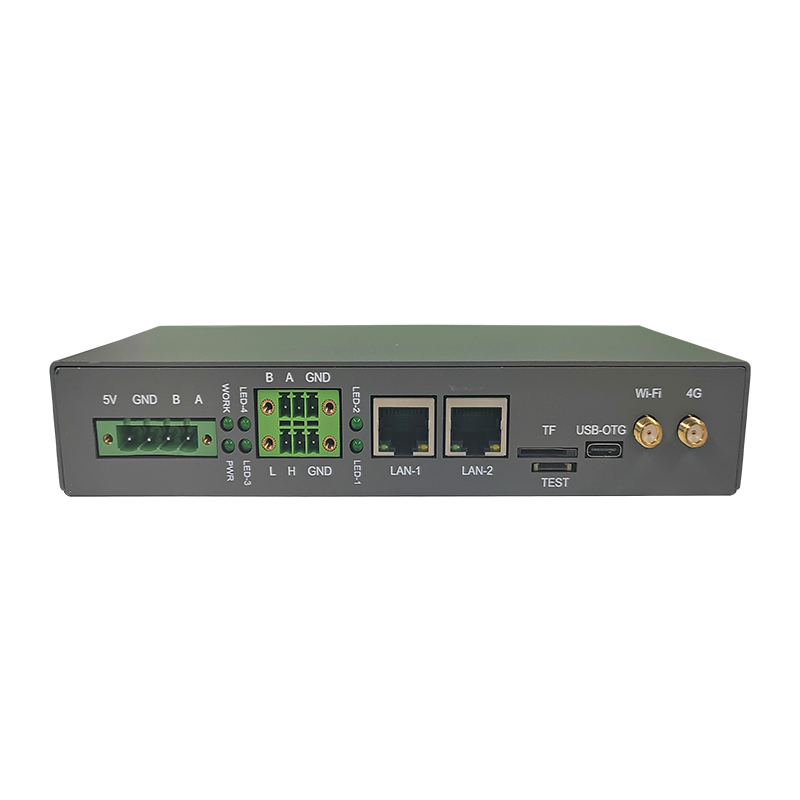

An STM32MP135-based industrial edge gateway with dual Gigabit Ethernet, 2× RS-485, CAN, 4G and Wi-Fi that collects PLC and meter data and publishes it via MQTT, Modbus, OPC UA or HTTP.
Overview
The TV-IS013 is a compact, all-metal gateway designed for industrial IoT projects. It is built on ST’s STM32MP135 (Arm Cortex-A7 up to 1 GHz) with 4 Gb DDR3 and 8 GB eMMC. Two RS-485 ports and one CAN port connect PLCs, meters, CNC machines and robot arms; two Gigabit Ethernet ports, 4G and Wi-Fi provide flexible uplinks. Embedded industrial protocols and edge computing let the gateway clean and pre-process data locally before pushing it to any IIoT platform.
Key features
- ST STM32MP135, Arm Cortex-A7 up to 1 GHz; 4 Gb DDR3, 8 GB eMMC
- 2× RS-485, 1× CAN, 2× 10/100/1000M Ethernet, TF slot
- 4G and Wi-Fi uplinks; RS-232 and USB Type-C debug
- Collects data from PLCs, meters, CNC machines and robot arms
- Cloud connection via MQTT, Modbus, OPC UA and HTTP
- Serial forwarding, transparent transmission, remote configuration and maintenance, data encryption
- Ultra-thin all-metal housing; desktop or wall mount; -20 to 70 °C
Specifications
| Item | Specification |
|---|---|
| Processor | ST STM32MP135, Arm Cortex-A7, up to 1 GHz |
| Memory | 4 Gb DDR3 |
| Storage | 8 GB eMMC; TF slot |
| Ethernet | 2× 10/100/1000M |
| Serial / Fieldbus | 2× RS-485, 1× CAN, 1× RS-232 (debug) |
| USB | 1× USB Type-C (debug) |
| Wireless | 4G, Wi-Fi |
| Protocols | Modbus, MQTT, OPC UA, HTTP; embedded industrial protocols |
| Power Input | 5V DC |
| Operating Temperature | -20 to +70 °C |
| Enclosure | All-metal, ultra-thin, narrow bezel |
| Mounting | Desktop, wall |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Smart factories and machine monitoring
- Equipment makers’ remote service
- EV charger and energy-storage site monitoring
- Smart buildings
- Smart agriculture and livestock farming
- Smart city IoT
Related industry solutions: Industrial Automation & Machine Builders · Power, Energy Storage & Utilities · EV Charging Stations
Customization and ordering
The TV-IS013 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Industrial IoT Gateways
Frequently asked questions
Which protocols does the TV-IS013 support?
It connects northbound to IIoT platforms using MQTT, Modbus, OPC UA and HTTP, and southbound to PLCs, meters and CNC machines through RS-485, CAN and Ethernet with embedded industrial protocols.
What uplinks are available?
Two Gigabit Ethernet ports, 4G and Wi-Fi.
Can the gateway be managed remotely?
Yes. It supports remote configuration, remote maintenance and data encryption.
