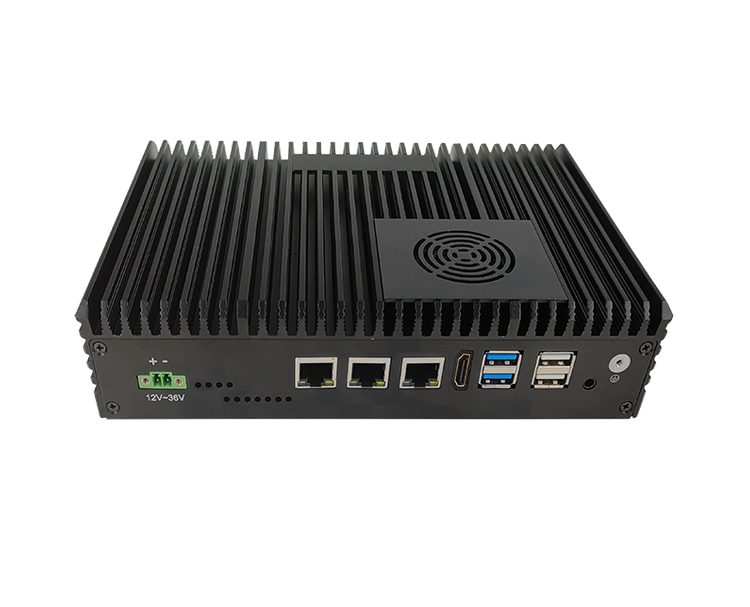

A BM1684 AI edge server (17.6 TOPS INT8) for camera-dense sites: decodes 32 channels of 1080p and runs real-time analytics with wide-voltage industrial I/O.
Overview
The YZ-B012 shares the industrial hardware platform of the YZ-B011 and is positioned for sites with many cameras. The BM1684 SoC decodes up to 32 channels of 1080p video and runs TouchVision’s library of detection algorithms locally, while three Gigabit ports, isolated CAN and serial ports integrate the box with existing NVR and control systems. Wide-voltage 12–36V DC input and a -20 to +70 °C rating make it suitable for field cabinets.
Key features
- SOPHGO BM1684, 8× Cortex-A53 @ 2.3 GHz, 17.6 TOPS INT8
- Decodes up to 32× 1080p streams
- Real-time AI analytics with 50+ algorithms
- 3× GbE, isolated CAN, RS-232/RS-485, DIO
- DC 12–36V; -20 to +70 °C
- Ubuntu 20.04; Docker and Python development
Specifications
| Item | Specification |
|---|---|
| AI SoC | SOPHGO BM1684 |
| CPU | 8× Cortex-A53 @ 2.3 GHz |
| AI Performance | 17.6 TOPS INT8 |
| Video Decode | Up to 32× 1080p |
| Concurrent Analytics | Up to 16 streams per factory text [CONFIRM 32-ch analytics claim] |
| Memory / Storage | As YZ-B011 (12/16 GB LPDDR4X; eMMC; M.2; TF) |
| I/O | 3× GbE, RS-232, RS-485, 2× isolated CAN, DIO, USB |
| OS | Ubuntu 20.04 |
| Power Input | DC 12–36V |
| Operating Temperature | -20 to +70 °C |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Large campuses and logistics hubs
- Residential communities
- Fuel stations
- Factories and warehouses
Related industry solutions: AI Video Analytics & Smart Safety
Customization and ordering
The YZ-B012 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Edge AI Computers & Video Analytics Boxes
Frequently asked questions
What is the difference between the YZ-B011 and YZ-B012?
Both use the BM1684 platform with 17.6 TOPS. The YZ-B012 is listed as the 32-channel model for camera-dense sites; confirm the exact concurrent-analytics channel count for your algorithm mix with TouchVision.
Which algorithms are included?
Typical algorithms include fire and smoke, intrusion, crowding, PPE (helmet, uniform), illegal parking, blocked fire lanes, e-bikes in elevators, overflowing bins and more than 40 others. Custom algorithms can be trained on request.
