A fanless, all-metal 8-inch wall-mount touch panel PC with infrared touch and 2 mm tempered glass that stays usable in direct sunlight.
Overview

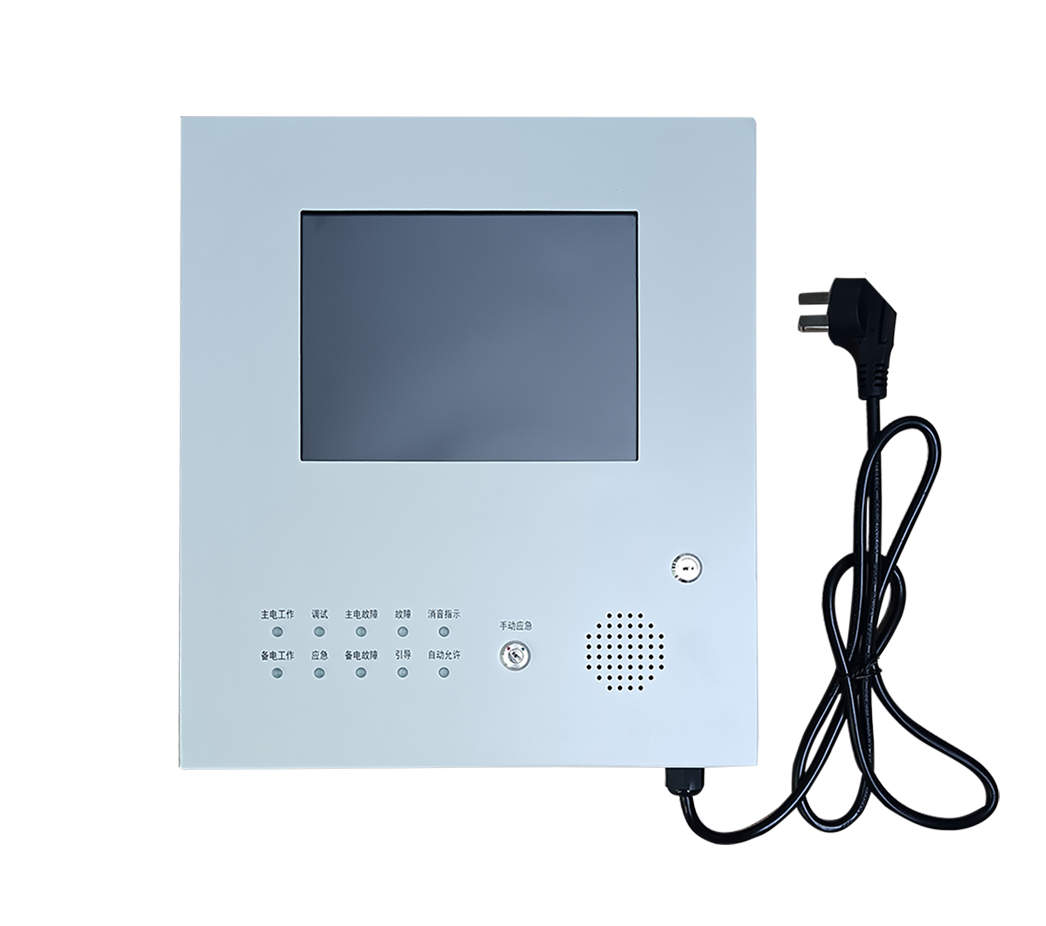

The TV-IN08TP-BG is a compact embedded graphic display terminal for wall-mounted control points. An 8-inch 800×600 LCD sits behind 2 mm tempered glass with an industrial infrared touch frame, so the screen stays operable in direct sunlight and with gloves. The all-metal, fanless enclosure is waterproof, dustproof, scratch-resistant and resists impact. It is used as an emergency-lighting controller display and as an HMI in power distribution, new-energy equipment, fire-safety systems and smart buildings.
Key features
- 8″ true-color LED LCD, 800×600, 16.7M colors
- Industrial infrared touch: single/dual touch and gestures
- 2 mm tempered glass; readable and operable in direct sunlight
- All-metal, fanless, wall-mount housing
- Waterproof, dustproof, scratch- and impact-resistant
- Customizable processor board, interfaces and firmware
Specifications
| Item | Specification |
|---|---|
| Display | 8″ TFT LED LCD, 16.7M colors |
| Resolution | 800 × 600 |
| Touch | Industrial infrared; single/dual touch, gesture |
| Cover Glass | 2 mm tempered glass |
| Enclosure | All-metal, fanless |
| Mounting | Wall mount |
| Protection | Waterproof, dustproof, scratch- and impact-resistant (IP rating on request) |
| Processor / I/O | Configurable per project (ARM platforms: Rockchip, TI, NXP, ST) |
| Operating Temperature | Wide range (on request) |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Emergency lighting and evacuation controllers
- Power distribution and substation panels
- New-energy equipment (charging, storage)
- Fire-safety control systems
- Smart building and IoT control points
Related industry solutions: Fire Safety & Building Control · Power, Energy Storage & Utilities · EV Charging Stations
Customization and ordering
The TV-IN08TP-BG can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Industrial Panel PCs & HMI Touch Panels
Frequently asked questions
Can the TV-IN08TP-BG be read in sunlight?
Yes. The infrared touch frame and 2 mm tempered glass front are designed for bright environments, and the factory specification states it can be operated in direct sunlight.
Which processor runs inside?
The terminal is built on TouchVision’s own embedded boards; the CPU platform, interfaces and OS are configured per project.
