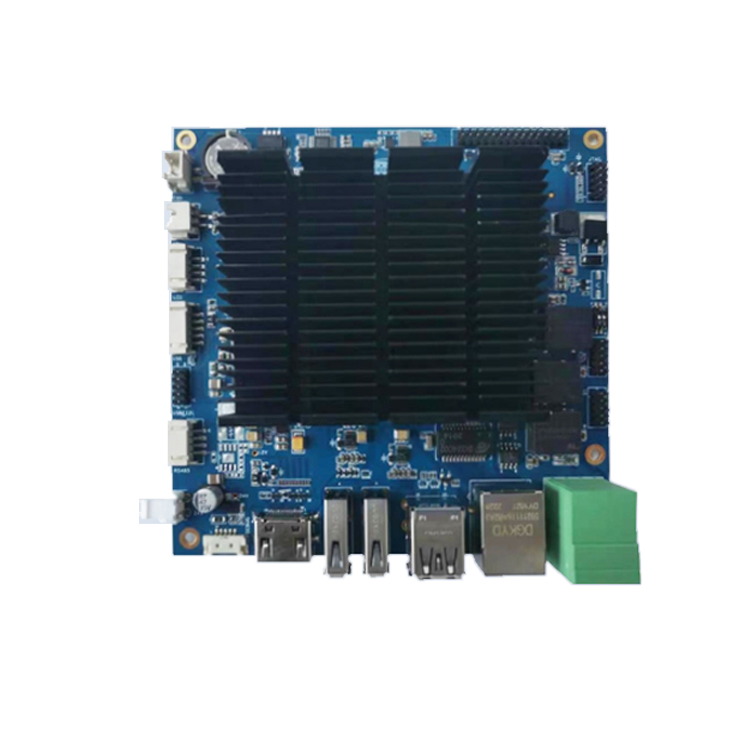

NXP i.MX 8M board with four Cortex-A53 cores, a real-time Cortex-M4, a 2.3 TOPS NPU and 4K display output, for industrial HMI and edge-AI devices.
Overview
The TV-i.MX8M is built on NXP’s i.MX 8M family: four Cortex-A53 cores at 1.5 GHz for the application stack, a Cortex-M4 core for real-time tasks, a GPU/VPU with HDR10 and ISP support, and a 2.3 TOPS NPU for on-device inference. Hardware encryption protects firmware and data. The board outputs 4K over HDMI and dual-channel LVDS, and it is produced on an 8-layer ENIG (immersion gold) PCB for long-term reliability in industrial and medical equipment.
Key features
- NXP i.MX 8M: 4× Cortex-A53 @ 1.5 GHz + Cortex-M4 real-time core
- 2.3 TOPS NPU for edge AI inference
- GPU/VPU, HDR10, ISP; 4K output via HDMI and dual LVDS
- Hardware encryption
- RS-485, RS-232, CAN, USB, Ethernet, SD/TF, audio
- Linux 5.4 + Qt 5.15 (Android/Linux options)
- -20 to +85 °C; 8-layer ENIG PCB
Specifications
| Item | Specification |
|---|---|
| Processor | NXP i.MX 8M, quad-core Cortex-A53 @ 1.5 GHz + Cortex-M4 |
| AI Accelerator | NPU, 2.3 TOPS |
| Graphics / Video | GPU, VPU, HDR10, ISP |
| Memory | 2 GB DDR4 |
| Storage | 8 GB eMMC; SD/TF |
| Display | Dual-channel LVDS, HDMI (4K) |
| Serial | RS-485 (5× per datasheet / 1× per web spec image), RS-232, CAN [CONFIRM] |
| USB | 4× USB |
| Ethernet | 1× |
| Audio | Yes |
| Security | Hardware encryption |
| Power Input | 24V DC |
| OS Support | Linux 5.4 + Qt 5.15; Android/Linux |
| Operating Temperature | -20 to +85 °C |
| Dimensions | 147 × 120 × 31.5 mm (datasheet) / 120 × 120 × 30.8 mm (web) [CONFIRM] |
| PCB | 8-layer, ENIG |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Industrial IoT terminals
- Fire-alarm and building control panels
- Medical device HMIs
- Smart home hubs
- Edge AI vision devices
Related industry solutions: Fire Safety & Building Control · Industrial Automation & Machine Builders · AI Video Analytics & Smart Safety
Customization and ordering
The TV-i.MX8M can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Embedded Industrial Motherboards & ARM Boards
Frequently asked questions
Does the TV-i.MX8M have an NPU?
Yes. The board integrates a 2.3 TOPS NPU, so lightweight vision and voice models can run on the device without a separate AI accelerator.
What is the Cortex-M4 core used for?
The M4 core runs real-time tasks such as motor control, sensor sampling or safety logic independently from the Linux application processor.
Which software stack ships with the board?
Linux 5.4 with Qt 5.15 is the standard image; Android/Linux variants are available for OEM projects.
