A slim, narrow-bezel 17-inch fanless panel PC with 24V DC input, dual RS-485, Ethernet and USB, for panel, rack or desktop installation.
Overview

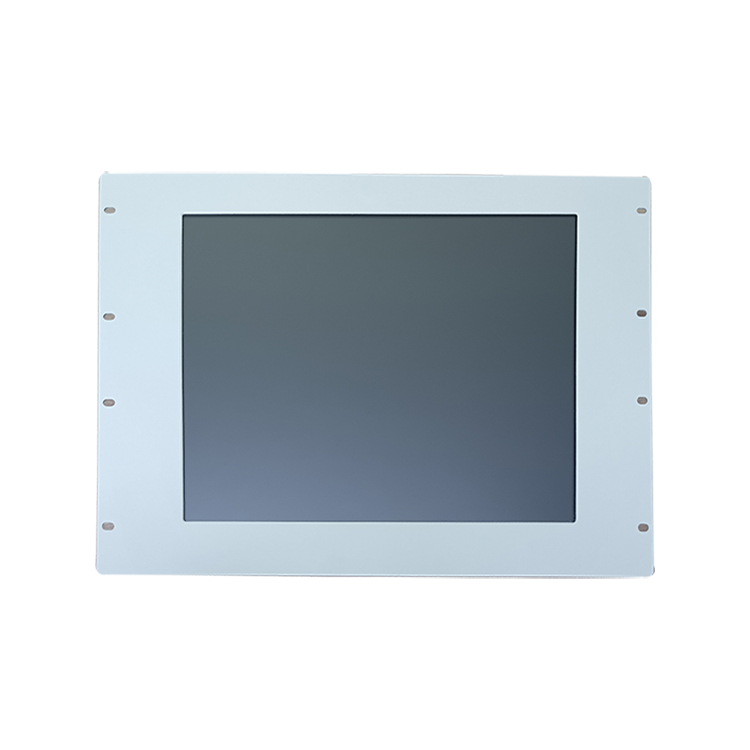

The TV-IN17P-MINI is an ultra-thin, narrow-bezel 17-inch industrial computer for cabinets and consoles where depth is limited. It pairs a 1280×1024 industrial LCD with a low-power embedded board in an all-metal fanless housing, and it provides the ports field installers need: 24V DC input, two RS-485, Ethernet, USB OTG, three USB host ports and a TF card slot. The architecture is stable and highly resistant to electrical interference.
Key features
- 17″ LED LCD, 1280×1024, 250 cd/m²
- Ultra-thin, narrow-bezel all-metal housing; fanless
- 24V DC input; 2× RS-485, Ethernet, USB OTG, 3× USB, TF card
- Strong anti-interference design; wide operating temperature
- Panel (embedded), rack and desktop mounting
Specifications
| Item | Specification |
|---|---|
| Display | 17″ LED LCD |
| Resolution | 1280 × 1024 |
| Brightness | 250 cd/m² |
| Touch | Optional (touch type on request) |
| I/O (rear panel) | DC 24V, 2× RS-485, 1× Ethernet, 1× USB OTG, 3× USB, TF card, test port |
| Enclosure | All-metal, ultra-thin, narrow bezel, fanless |
| Mounting | Panel, rack, desktop |
| Operating Temperature | Wide range (on request) |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Fire-safety control systems
- Industrial and power control consoles
- IoT monitoring stations
- Machine cabinets with limited depth
Related industry solutions: Fire Safety & Building Control · Industrial Automation & Machine Builders · Power, Energy Storage & Utilities
Customization and ordering
The TV-IN17P-MINI can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Industrial Panel PCs & HMI Touch Panels
Frequently asked questions
Does the TV-IN17P-MINI include a touch screen?
The factory specification does not fix the touch type; it can be supplied as a display terminal or with resistive, capacitive or infrared touch on request.
What power input does it use?
It runs on 24V DC, the standard supply in industrial control cabinets.
