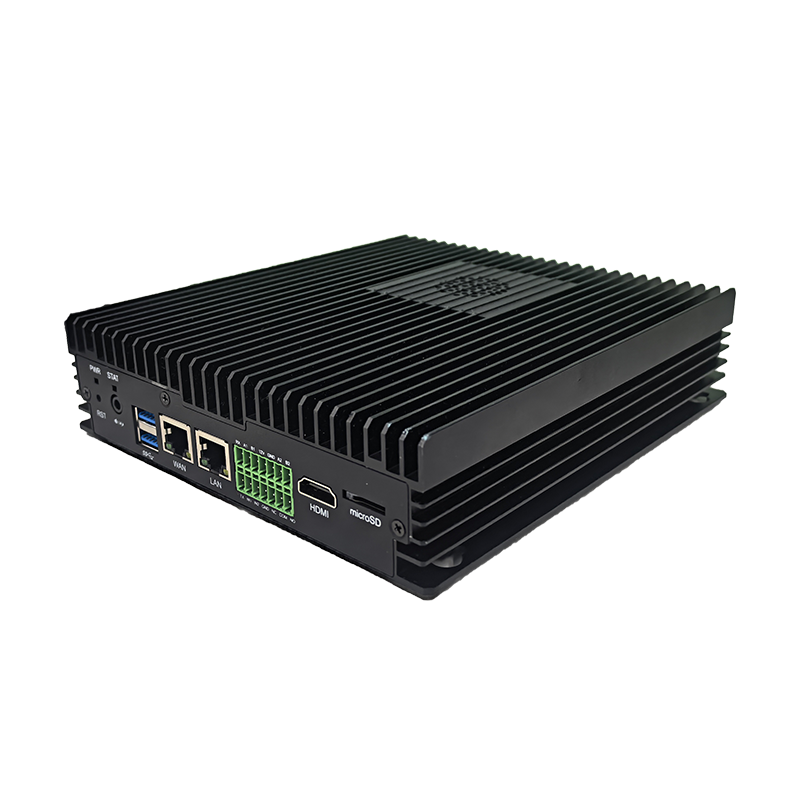

A BM1684 AI video analytics box that runs directly from 220V AC mains, with alarm inputs, dual RS-485 and HDMI for control-room installations.
Overview
The YZ-B016 removes the external power adapter from the installation: it connects directly to 220V AC. Inside is the same BM1684 platform with 17.6 TOPS INT8, 32-channel 1080p decoding, 2-channel encoding and 16 concurrent analytics streams. Two alarm inputs, two RS-485 ports, digital I/O, HDMI and audio make it easy to integrate with alarm panels and on-site displays.
Key features
- Direct 220V AC input; no external adapter
- BM1684, 17.6 TOPS INT8
- 32× 1080p decode, 2× encode, 16 concurrent analytics
- 12 GB LPDDR4; 32 GB eMMC; SD
- 2× GbE, 2× USB 3.0, 2 alarm inputs, DIO, 2× RS-485, HDMI, audio
- Active cooling; -20 to +60 °C; 185 × 170 × 43.6 mm
Specifications
| Item | Specification |
|---|---|
| AI SoC | SOPHGO BM1684, 8× Cortex-A53 @ 2.3 GHz |
| AI Performance | 17.6 TOPS INT8 |
| Video | 32× 1080p decode; 2× encode; 16 concurrent analytics |
| Memory | 12 GB LPDDR4 |
| Storage | 32 GB eMMC; SD |
| Ethernet | 2× Gigabit |
| I/O | 2× USB 3.0, DIO, 2 alarm inputs, 2× RS-485, HDMI, audio |
| OS | Ubuntu 20.04 |
| Power Input | 220V AC direct |
| Cooling | Active |
| Operating Temperature | -20 to +60 °C (factory test data) |
| Dimensions | 185 × 170 × 43.6 mm |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Control rooms and security offices
- Retail stores
- Schools
- Property management offices
Related industry solutions: AI Video Analytics & Smart Safety
Customization and ordering
The YZ-B016 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Edge AI Computers & Video Analytics Boxes
Frequently asked questions
Does the YZ-B016 need an external power adapter?
No. It accepts 220V AC directly. For 110V markets, confirm the input range with TouchVision.
Can it receive alarms from other systems?
Yes. It has two alarm inputs plus digital I/O and RS-485 for alarm panels and linkage.
