A small-footprint BM1684 AI edge server with M.2 NVMe and up to 2 TB optional storage for keeping evidence clips alongside real-time analytics.
Overview

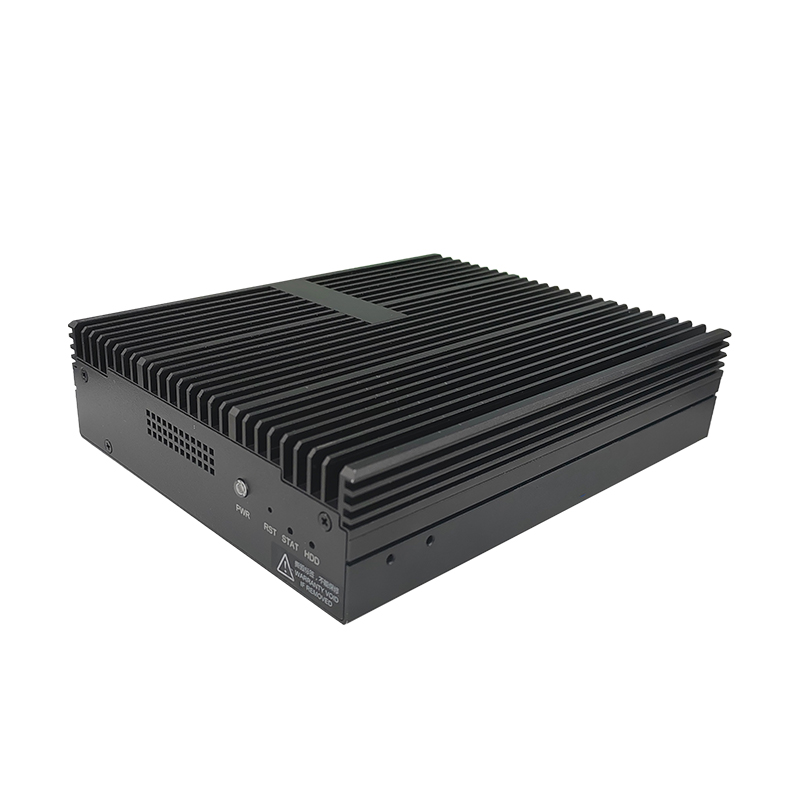

The YZ-B015 is the storage-friendly member of the BM1684 family. In a 188 × 148 × 44.5 mm chassis it decodes 32 channels of 1080p, analyses 16 streams concurrently and stores events locally on M.2 NVMe (2242) or an optional drive of up to 2 TB. Two Gigabit ports, optional Wi-Fi/4G/5G, digital I/O and RS-232/RS-485 cover typical integration needs.
Key features
- BM1684, 17.6 TOPS INT8
- 32× 1080p decoding; 16 concurrent analytics streams
- 12 GB LPDDR4; 32 GB eMMC; M.2 NVMe 2242; SD; optional drive up to 2 TB
- 2× GbE; Wi-Fi / 4G / 5G optional
- 2× USB 3.0, HDMI, 2 DI / 2 DO, RS-232, RS-485, SIM
- DC 12V; active cooling; -20 to +60 °C; 188 × 148 × 44.5 mm
Specifications
| Item | Specification |
|---|---|
| AI SoC | SOPHGO BM1684, 8× Cortex-A53 @ 2.3 GHz |
| AI Performance | 17.6 TOPS INT8 |
| Video Decode | 32× 1080p |
| Concurrent Analytics | 16 streams |
| Memory | 12 GB LPDDR4 |
| Storage | 32 GB eMMC; M.2 NVMe 2242; SD; optional HDD/SSD up to 2 TB |
| Ethernet | 2× Gigabit |
| Wireless | Wi-Fi / 4G / 5G optional |
| I/O | 2× USB 3.0, HDMI, 2 DI / 2 DO, 1× RS-232, 1× RS-485, SIM, SD |
| OS | Ubuntu 20.04 |
| Power | DC 12V |
| Cooling | Active |
| Operating Temperature | -20 to +60 °C |
| Storage Temperature | -20 to +70 °C |
| Humidity | 10–90% RH |
| Dimensions | 188 × 148 × 44.5 mm |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Sites needing local evidence storage
- Retail chains
- Schools and canteens
- Small industrial sites
Related industry solutions: AI Video Analytics & Smart Safety
Customization and ordering
The YZ-B015 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Edge AI Computers & Video Analytics Boxes
Frequently asked questions
How much storage can the YZ-B015 hold?
It has 32 GB eMMC, an M.2 NVMe 2242 slot, an SD slot and an optional drive of up to 2 TB.
Is the YZ-B015 fanless?
No. It uses active cooling and is rated for -20 to +60 °C operation.
