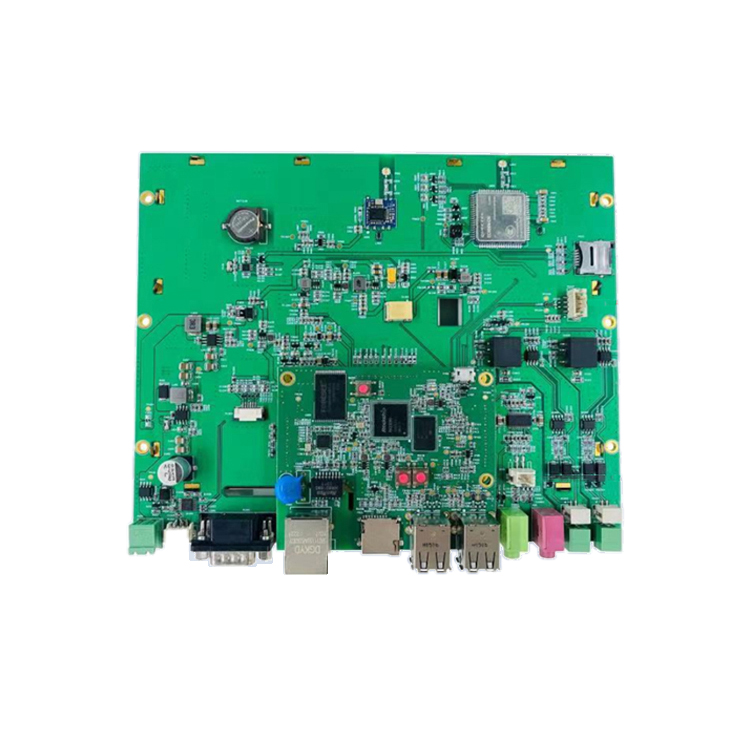

Cost-optimized quad-core Cortex-A35 board with a built-in audio codec, RGB/MCU display up to 720p, Wi-Fi and 4G, made for appliance, voice-control and smart-home HMIs.
Overview
The TV-RK3308 targets products where cost, audio and connectivity matter more than graphics performance. Rockchip’s RK3308 combines four Cortex-A35 cores at 1.3 GHz with an integrated audio codec (8 ADC / 2 DAC), which makes it a natural choice for voice-controlled devices, intercom-style terminals and appliance control panels. The board drives an RGB/MCU display up to 720p and is commonly paired with an 8-inch screen and multi-touch capacitive panel. Wi-Fi and 4G are onboard for connected products.
Key features
- Rockchip RK3308, 4× Cortex-A35 @ 1.3 GHz
- Integrated audio codec: 8 ADC / 2 DAC for voice and far-field audio
- RGB/MCU display up to 720p; typical pairing with 8″ capacitive touch display
- 2× RS-485, 4× USB, Ethernet, RS-232, DB9
- Wi-Fi + 4G
- Linux + Qt (Android/Linux options)
- -20 to +80 °C operating
Specifications
| Item | Specification |
|---|---|
| Processor | Rockchip RK3308, quad-core Cortex-A35, 1.3 GHz |
| Audio | Integrated codec, 8 ADC / 2 DAC; audio in/out |
| Memory | 512 MB DDR3 |
| Storage | 4 GB eMMC; SD/TF |
| Display | RGB / MCU, up to 720p |
| Serial | 2× RS-485, RS-232, DB9 |
| USB | 4× USB |
| Ethernet | 1× |
| Wireless | Wi-Fi, 4G |
| Power Input | 12V DC |
| OS Support | Linux + Qt (Android/Linux per source) |
| Operating Temperature | -20 to +80 °C |
| Storage Temperature | -25 to +90 °C |
| Dimensions | 200 × 167 × 33.8 mm |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Smart home control panels
- Home appliance display/control boards
- Voice-control terminals and smart speakers
- Robot vacuum and service robot controllers
- Conference room devices
Related industry solutions: Vending Machines & Smart Retail · Fitness Equipment
Customization and ordering
The TV-RK3308 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Embedded Industrial Motherboards & ARM Boards
Frequently asked questions
What is the TV-RK3308 best used for?
It is best for cost-sensitive connected devices that need audio: voice-control terminals, appliance control panels, smart-home hubs and conference devices.
What display can I connect?
The board supports RGB/MCU displays up to 720p. TouchVision usually supplies it with an 8-inch display and multi-touch capacitive panel.
Does it support 4G?
Yes. Wi-Fi and 4G connectivity are both supported on the TV-RK3308.
