A compact, ≤20 W edge AI box (BM1684, 17.6 TOPS) that analyses 16 streams and decodes 32× 1080p, with modular options for SATA, LTE, Wi-Fi and HDMI.
Overview

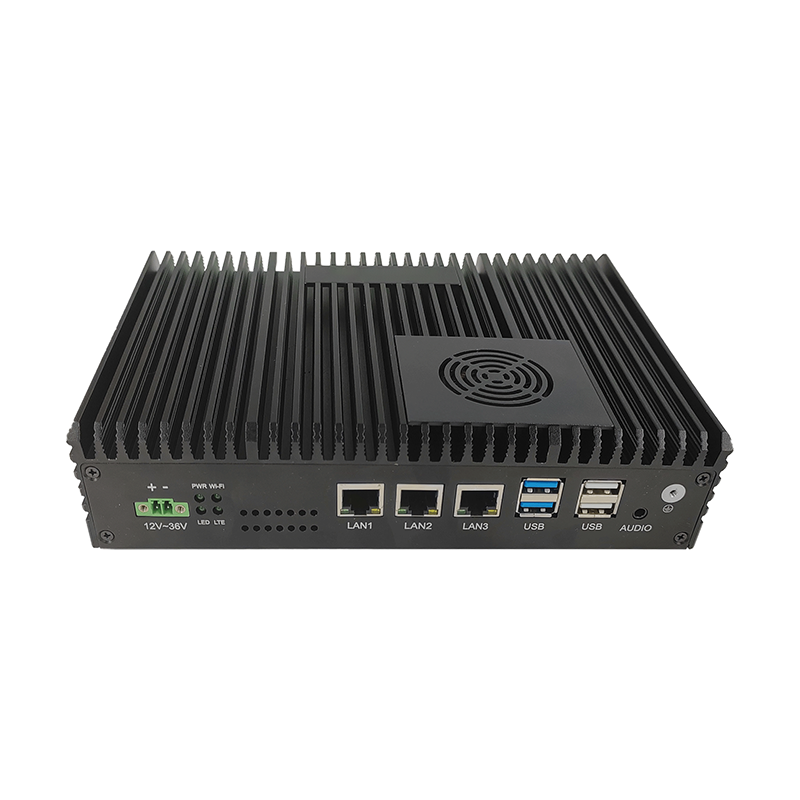

The YZ-B013 packs the BM1684 AI platform into a 217 × 155 × 48 mm chassis that can be wall- or desk-mounted. Typical power consumption is 20 W or less from a 12V/5A supply, so it fits in a small cabinet next to the cameras it serves. Modular options add a SATA drive, LTE, Wi-Fi or HDMI only when a project needs them.
Key features
- BM1684, 8× Cortex-A53 @ 2.3 GHz; 17.6 TOPS INT8 / 2.2 TFLOPS FP32
- 16 concurrent analytics streams; 32× 1080p decoding; 1080p@50 encoding
- 12 GB DDR
- 3× GbE, 2× USB 3.0, 2× USB 2.0, RS-232, RS-485, 2× isolated CAN, TF, SIM
- Options: SATA drive, LTE, Wi-Fi, HDMI module
- Typical power ≤20 W (DC 12V/5A); -20 to +70 °C
- Wall or desktop mounting; 217 × 155 × 48 mm
Specifications
| Item | Specification |
|---|---|
| AI SoC | SOPHGO BM1684 |
| CPU | 8× Cortex-A53 @ 2.3 GHz |
| AI Performance | 17.6 TOPS INT8; 2.2 TFLOPS FP32 |
| Video Decode | 32× 1080p (1080p@960 fps aggregate) |
| Video Encode | 1080p@50 |
| Concurrent Analytics | 16 streams |
| Memory | 12 GB DDR |
| Storage | On request; optional SATA drive |
| Ethernet | 3× Gigabit |
| USB | 2× USB 3.0, 2× USB 2.0 |
| Serial / Fieldbus | 1× RS-232, 1× RS-485, 2× isolated CAN |
| Other | TF, SIM; HDMI optional |
| Wireless | LTE / Wi-Fi optional |
| Power | DC 12V / 5A; typical ≤20 W |
| Operating Temperature | -20 to +70 °C |
| Dimensions | 217 × 155 × 48 mm |
| Mounting | Wall, desktop |
Specifications are based on manufacturer data and may change. Items marked “on request” are configured per project; ask for the latest datasheet.
Applications
- Commercial kitchen hygiene monitoring (hats, masks, rodents)
- Fuel station safety
- Residential community safety
- Retail and campus analytics
Related industry solutions: AI Video Analytics & Smart Safety
Customization and ordering
The YZ-B013 can be customized for OEM projects: interfaces, enclosure or mounting, firmware/OS image and branding. Small-batch pilot orders are supported. Request a quote or sample, chat on WhatsApp (+86 135 0532 6001), or read about our OEM/ODM service.
More in this category: Edge AI Computers & Video Analytics Boxes
Frequently asked questions
How much power does the YZ-B013 use?
Typical power consumption is 20 W or less from a DC 12V/5A supply.
Can I add storage or 4G?
Yes. SATA drive, LTE, Wi-Fi and HDMI modules are available as options.
